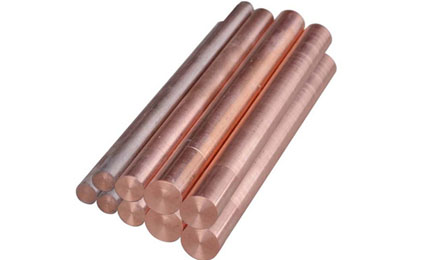

Tin Bronze Rod
Description
Application
  • Description

    Tin bronze rod is nonferrous metal alloy, which is used to make fittings with complicated shape, clear profile, low demands on air tightness.

    Application

    1. Tin bronze bar is very corrosion resistant in the air, fresh water and steam, which widely applied in steam generator and parts of ship.
    2. Tin bronze with phosphorus is capable of good mechanical property, which can be used in corrosion resistant parts and elastic parts of high precision machine tools.
    3. Tin bronze with lead can be used as corrosion resistant parts and sliding bearing. Furthermore, tin bronze with zinc can be applied in high gas tightness casting.

    Features

    Bronze bar is characterized by stable mechanical property in high temperature in 400 degree centigrade, good anti-frication, good corrosion resistance in air, fresh water and sea water and good workability in hot state pressure. It also can be hot dealing strengthen, welded.

    Specification

    Alloy Mark Sectional Shape Sectional Label Condition Sectional Dimension Length Reference Standard
    QAl11-6-6 Circle Diameter R φ38 to 160 According to Standard GB13808-92
    QAl9-2 QAl9-4 QAl10-3-1.5 Circle Diameter R φ26 to 160 According to Standard GB13808-92
    >φ160 to 200 300 to 4000 Manufacturer's Standard
    Y φ12 to 40 500 to 5000 GB4423-92
    Square Hexagon Inscribed Circle Diameter Y φ12 to 40 500 to 5000 GB4423-92
    QAl10-4-4 Circle Diameter R φ30 to 160 300 to 4000 Manufacturer's Standard
    QSi1-3 Circle Diameter R φ34 to 100 According to Standard GB13808-92
    QSi3-1 Circle Diameter R φ38 to 160 According to Standard GB13808-92
    Y φ25 to 40 500 to 5000 GB4423-92
    Square Hexagon Inscribed Circle Diameter Y φ25 to 40 500 to 5000 GB4423-92
    QSi3.5-3-1.5 Circle Diameter R φ40 to 120 According to Standard GB13808-92
    QSn7-0.2 Circle Diameter R φ60 to 120 According to Standard GB13808-92
    >φ120 to 180 300 to 4000 Manufacturer's Standard
    Y T φ25 to 40 500 to 5000 GB4423-92
    Square Hexagon Inscribed Circle Diameter Y T φ25 to 40 500 to 5000 GB4423-92
    QSn4-3 Circle Diameter R φ60 to 120 According to Standard GB13808-92
    >φ120 to 180 300 to 4000 Manufacturer's Standard
    Y φ25 to 40 500 to 5000 GB4423-92
    Square Hexagon Inscribed Circle Diameter Y φ25 to 40 500 to 5000 GB4423-92
    QSn6.5-0.1 QSn6.5-0.4 Circle Diameter R φ60 to 120 According to Standard GB13808-92
    >φ120 to 180 300 to 4000 Manufacturer's Standard
    Y φ25 to 40 500 to 5000 GB4423-92
    Square Hexagon Inscribed Circle Diameter Y φ25 to 40 500 to 5000 GB4423-92
    QSn4-0.3 Circle Diameter Y
