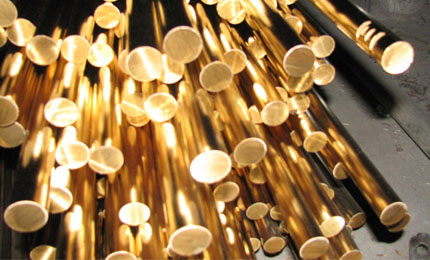

Aluminum Bronze Rod
Description
Application
  • Description

    Generally, the content of aluminum in bronze rod is not more than 11.5 percent. Sometimes in order to improve property further, aluminum bronze rod will be added into moderate iron, nickel and manganese.

    Features

    1. Aluminum bronze rod has high strength and anti-frication, good corrosion resistance,which has capable of good workability in hot pressure. And it can be electric welding and gas welding.
    2. Aluminum bronze with iron and manganese has capable of high strength and wear-resistance, which can improve hardness after quench and temper, good high temperature corrosion resistance, anti-oxidation, good corrosion resistance in the air and seawater.
    3. Machinability: It can be welded and not easy for brazed, and has good workability

    Specification

    Alloy Mark Sectional Shape Sectional Label Condition Sectional Dimension Length Reference Standard
    QAl11-6-6 Circle Diameter R φ38 to 160 According to Standard GB13808-92
    QAl9-2 QAl9-4 QAl10-3-1.5 Circle Diameter R φ26 to 160 According to Standard GB13808-92
    >φ160 to 200 300 to 4000 Manufacturer's Standard
    Y φ12 to 40 500 to 5000 GB4423-92
    Square Hexagon Inscribed Circle Diameter Y φ12 to 40 500 to 5000 GB4423-92
    QAl10-4-4 Circle Diameter R φ30 to 160 300 to 4000 Manufacturer's Standard
    QSi1-3 Circle Diameter R φ34 to 100 According to Standard GB13808-92
    QSi3-1 Circle Diameter R φ38 to 160 According to Standard GB13808-92
    Y φ25 to 40 500 to 5000 GB4423-92
    Square Hexagon Inscribed Circle Diameter Y φ25 to 40 500 to 5000 GB4423-92
    QSi3.5-3-1.5 Circle Diameter R φ40 to 120 According to Standard GB13808-92
    QSn7-0.2 Circle Diameter R φ60 to 120 According to Standard GB13808-92
    >φ120 to 180 300 to 4000 Manufacturer's Standard
    Y T φ25 to 40 500 to 5000 GB4423-92
    Square Hexagon Inscribed Circle Diameter Y T φ25 to 40 500 to 5000 GB4423-92
    QSn4-3 Circle Diameter R φ60 to 120 According to Standard GB13808-92
    >φ120 to 180 300 to 4000 Manufacturer's Standard
    Y φ25 to 40 500 to 5000 GB4423-92
    Square Hexagon Inscribed Circle Diameter Y φ25 to 40 500 to 5000 GB4423-92
    QSn6.5-0.1 QSn6.5-0.4 Circle Diameter R φ60 to 120 According to Standard GB13808-92
    >φ120 to 180 300 to 4000 Manufacturer's Standard
    Y φ25 to 40 500 to 5000 GB4423-92
    Square Hexagon Inscribed Circle Diameter Y φ25 to 40 500 to 5000 GB4423-92
    QSn4-0.3 Circle Diameter Y
