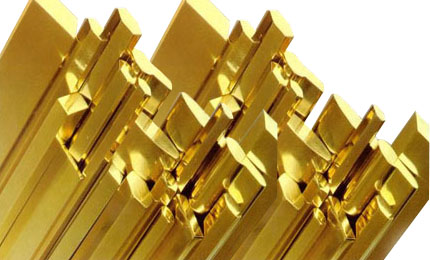

Special-Shaped Brass Rod
Description
Application
  • Description

    Special-shaped brass rod is applied in the parts of special-shaped metal.

    Specification

    Alloy Mark Sectional Shape Sectional Label Condition Sectional Dimension Length Reference Standard
    H80 H68 H59 Circle Diameter R φ26 to 120 According to Standard GB13808-92
    Square Hexagon Inscribed Circle Diameter
    Hsi80-3 HNi56-3 Circle Diameter R φ40 to 160 According to Standard GB13808-92
    HMn57-3-1 Circle Diameter R φ16 to 160
    Square Hexagon Inscribed Circle Diameter φ16 to 120
    HSn62-1 HMn58-2 HFe59-1-1 Circle Diameter R φ10 to 160 According to Standard GB13808-92
    >φ160 to 220 300 to 4000 Manufacturer's Standard
    Y φ5 to 60 500 to 5000 GB4423-92
    Square Hexagon Inscribed Circle Diameter R φ10 to 120 According to Standard GB13808-92
    Y φ5 to 60 500 to 5000 GB4423-92
    H85 H65 Circle Diameter M Y φ8 to 40 500 to 5000 GB4423-92
    Square Hexagon Inscribed Circle Diameter φ41 to 80 Manufacturer's Standard
    H62 HPb59-1 Circle Diameter R φ10 to 160 According to Standard GB13808-92
    >φ160 to 220 300 to 4000 Manufacturer's Standard
    Y2 φ5 to 80 500 to 5000 GB4423-92
    Square Hexagon Inscribed Circle Diameter R φ10 to 120
    GB13808-92
    Y2 φ5 to 80 500 to 5000 GB4423-92
    Rectangle Thickness×Width R 10 to 40×10 to 50 1000 to 5000 GB13809-92
    Y2 8 to 75×8 to 80 1000 to 5000 GB13809-92
    HPb59-1 (High Precision Polishing Stick) Circle Diameter Y2 Y φ5 to 19 1800 to 2700 GB/T13812-92
    HPb63-3 Circle Diameter Y2 φ7 to 60 500 to 5000 GB4423-92
    Y φ7 to 30
    Square Hexagon Inscribed Circle Diameter Y2 φ7 to 60 500 to 5000 GB4423-92
    Y φ7 to 30
    Rectangle Thickness×Width Y2 8 to 75×8 to 80 500 to 5000 GB13809-92
    HPb63-3 (High Precision Polishing Stick)
