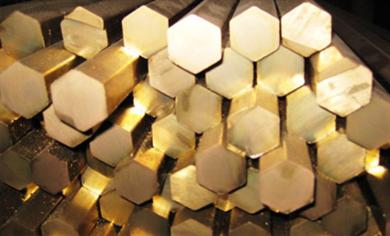

Hexagonal Brass Rod
Description
-
Description
Hexagonal brass rod is used to make bolt and nut. It is characterized by high strength, plasticity, which can bear cold, hot pressure processing, corrosion and fracture inclination.Specification
Alloy Mark Sectional Shape Sectional Label Condition Sectional Dimension Length Reference Standard H80 H68 H59 Circle Diameter R φ26 to 120 According to Standard GB13808-92 Square Hexagon Inscribed Circle Diameter Hsi80-3 HNi56-3 Circle Diameter R φ40 to 160 According to Standard GB13808-92 HMn57-3-1 Circle Diameter R φ16 to 160 Square Hexagon Inscribed Circle Diameter φ16 to 120 HSn62-1 HMn58-2 HFe59-1-1 Circle Diameter R φ10 to 160 According to Standard GB13808-92 >φ160 to 220 300 to 4000 Manufacturer's Standard Y φ5 to 60 500 to 5000 GB4423-92 Square Hexagon Inscribed Circle Diameter R φ10 to 120 According to Standard GB13808-92 Y φ5 to 60 500 to 5000 GB4423-92 H85 H65 Circle Diameter M Y φ8 to 40 500 to 5000 GB4423-92 Square Hexagon Inscribed Circle Diameter φ41 to 80 Manufacturer's Standard H62 HPb59-1 Circle Diameter R φ10 to 160 According to Standard GB13808-92 >φ160 to 220 300 to 4000 Manufacturer's Standard Y2 φ5 to 80 500 to 5000 GB4423-92 Square Hexagon Inscribed Circle Diameter R φ10 to 120 GB13808-92 Y2 φ5 to 80 500 to 5000 GB4423-92 Rectangle Thickness×Width R 10 to 40 × 10 to 50 1000 to 5000 GB13809-92 Y2 8 to 75 × 8 to 80 1000 to 5000 GB13809-92 HPb59-1 (High Precision Polishing Stick) Circle Diameter Y2 Y φ5 to 19 1800 to 2700 GB/T13812-92 HPb63-3 Circle Diameter Y2 φ7 to 60 500 to 5000 GB4423-92 Y φ7 to 30 Square Hexagon Inscribed Circle Diameter Y2 φ7 to 60 500 to 5000 GB4423-92 Y φ7 to 30 Rectangle Thickness×Width Y2 8 to 75 × 8 to 80 500 to 5000 GB13809-92 HPb63-3 (High Precision Polishing Stick)
-
Description
Hexagonal brass rod is used to make bolt and nut. It is characterized by high strength, plasticity, which can bear cold, hot pressure processing, corrosion and fracture inclination.Specification
Alloy Mark Sectional Shape Sectional Label Condition Sectional Dimension Length Reference Standard H80 H68 H59 Circle Diameter R φ26 to 120 According to Standard GB13808-92 Square Hexagon Inscribed Circle Diameter Hsi80-3 HNi56-3 Circle Diameter R φ40 to 160 According to Standard GB13808-92 HMn57-3-1 Circle Diameter R φ16 to 160 Square Hexagon Inscribed Circle Diameter φ16 to 120 HSn62-1 HMn58-2 HFe59-1-1 Circle Diameter R φ10 to 160 According to Standard GB13808-92 >φ160 to 220 300 to 4000 Manufacturer's Standard Y φ5 to 60 500 to 5000 GB4423-92 Square Hexagon Inscribed Circle Diameter R φ10 to 120 According to Standard GB13808-92 Y φ5 to 60 500 to 5000 GB4423-92 H85 H65 Circle Diameter M Y φ8 to 40 500 to 5000 GB4423-92 Square Hexagon Inscribed Circle Diameter φ41 to 80 Manufacturer's Standard H62 HPb59-1 Circle Diameter R φ10 to 160 According to Standard GB13808-92 >φ160 to 220 300 to 4000 Manufacturer's Standard Y2 φ5 to 80 500 to 5000 GB4423-92 Square Hexagon Inscribed Circle Diameter R φ10 to 120 GB13808-92 Y2 φ5 to 80 500 to 5000 GB4423-92 Rectangle Thickness × Width R 10 to 40 × 10 to 50 1000 to 5000 GB13809-92 Y2 8 to 75 × 8 to 80 1000 to 5000 GB13809-92 HPb59-1 (High Precision Polishing Stick) Circle Diameter Y2 Y φ5 to 19 1800 to 2700 GB/T13812-92 HPb63-3 Circle Diameter Y2 φ7 to 60 500 to 5000 GB4423-92 Y φ7 to 30 Square Hexagon Inscribed Circle Diameter Y2 φ7 to 60 500 to 5000 GB4423-92 Y φ7 to 30 Rectangle Thickness × Width Y2 8 to 75 × 8 to 80 500 to 5000 GB13809-92 HPb63-3 (High Precision Polishing Stick)
